What's this project?

Let people know if they can bother you with light signals!

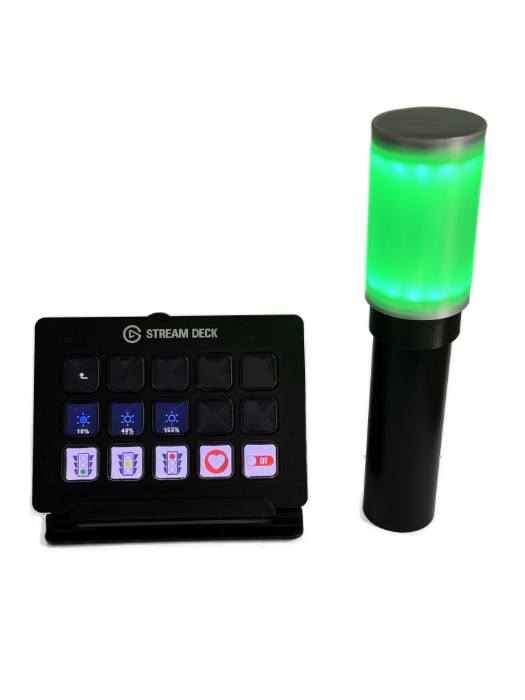

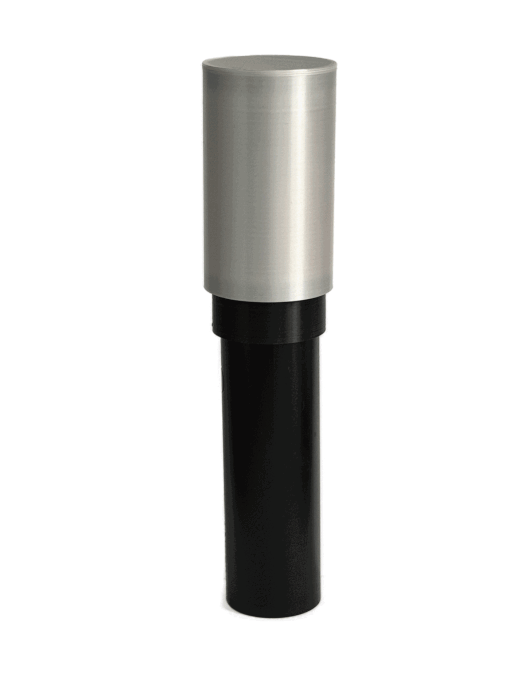

A simple to build, nice looking, portable DIY Busy Light.

It comes with a with a rudimentary (and ugly) Web UI and a simple (but hopefully convenient) Rest API.

Web UI

A very simplistic (and ugly) UI is available on port 80.
Default hostname is busylight-esp32.

You can try to reach the web UI @ http://busylight-esp32.local.

What an ugly UI ! 😄

BusyLight API

End points

Path	Method	Parameter	Description
/api/color	POST	color JSON object	Set the BusyLight color according to the color object passed in the request body. Return a status object.
/api/color	GET	n/a	Retreive the color currently displyed by the BusyLight. Return a color object.
/api/brightness	POST	brightness JSON object	Set the BusyLight brightness according to the brightness object passed in the request body. Return a status object.
/api/brightness	GET	n/a	Retreive the BusyLight brightness. Return a brightness object.
/api/status/on	POST / GET	n/a	Light up the BusyLight. White color. Return a status object.
/api/status/available	POST / GET	n/a	Set the BusyLight in available mode. Green color. Return a status object.
/api/status/away	POST / GET	n/a	Set the BusyLight in away mode. Yellow color. Return a status object.
/api/status/busy	POST / GET	n/a	Set the BusyLight in busy mode. Red color. Return a status object.
/api/status/off	POST / GET	n/a	Shutdown the BusyLight. Return a status object.
/api/status	GET	n/a	Retreive the current BusyLight status. Return a status object.
/api/debug	GET	n/a	Retreive the full BusyLight status.

JSON objects

color object

{
  "r": 255,
  "g": 0,
  "b": 127,
  "brightness": 0.5
}

r: RED color | integer | [0 .. 255]
g: GREEN color | integer | [0 .. 255]
b: BLUE color | integer | [0 .. 255]
brightness: LED brighness (optional) | float | [0.0 .. 1.0]

brightness object

{
  "brightness": 0.5
}

brightness: LED brighness | float | [0.0 .. 1.0]

status object

{
  "status": "<STATUS>"
}

<STATUS> : on | off | available | away | busy | colored

MuteDeck integration

The POST api/mutedeck-webhook endpoint aims to collect MuteDeck webhook callbacks.

It will automatically switch to the BusyLight in:

• busy mode (Red color) when entering a meeting with Mic ON and camera ON.
• away mode (Yellow color) when entering a meeting with Mic OFF and camera ON.
• away mode (Yellow color) if the mic is muted during a meeting.
• available mode (Green color) when exiting/closing a meeting.

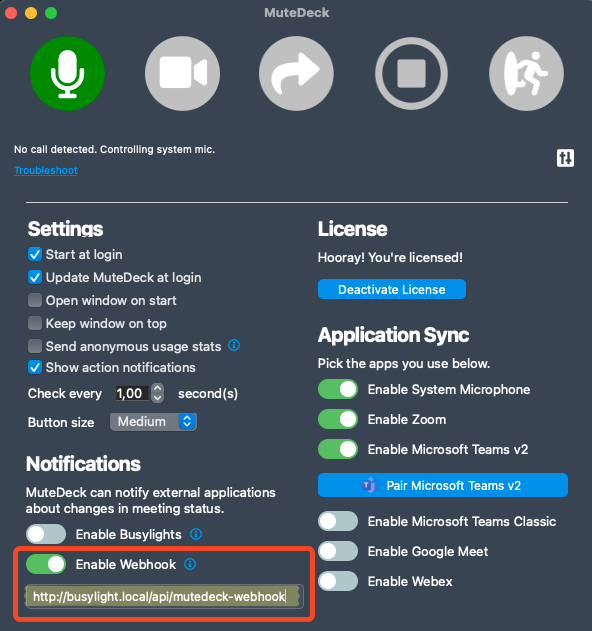

MuteDeck Configuration

Electronic parts

Parts	Links (Amazon - not affiliated)
Micro-controler	D1 ESP32 Mini NodeMCU
Led rings (x2)	AZDelivery 5 x LED Ring 5V RGB compatible avec WS2812B 12-Bit 38mm
Battery	Anker PowerCore 5000mAh
USB A to USB C adapter	USB A to USB C adapter

Installation

(1) Flash your ESP32 with Micropython.

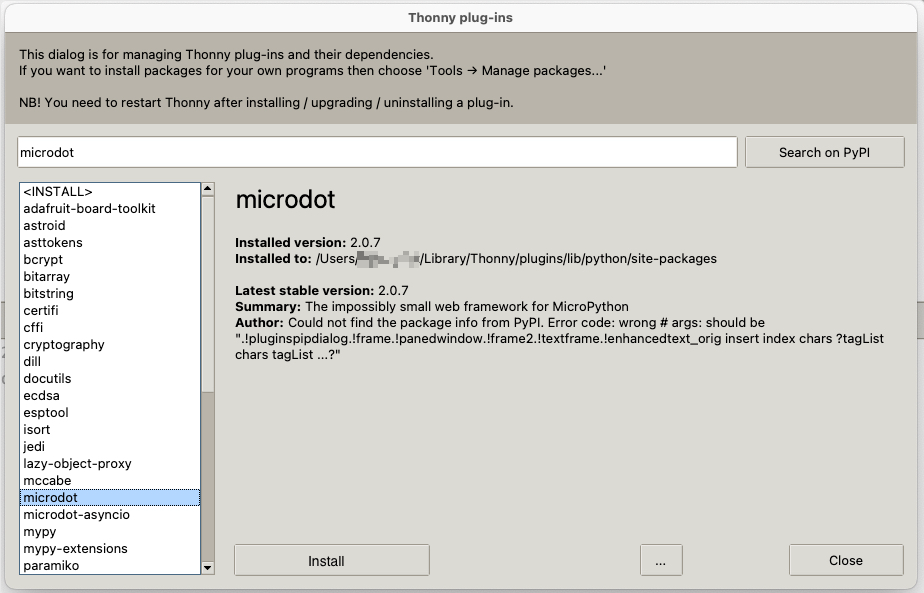

(2) Install microdot library on the ESP32. This can easily be done using Thonny:

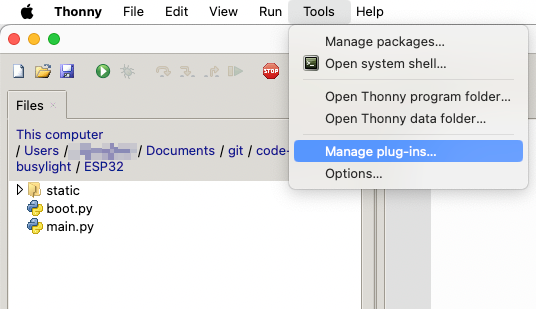

Tools > Manage plug-ins	lib selection

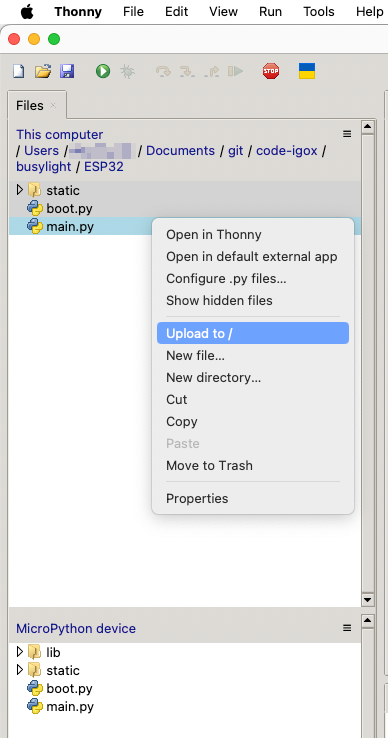

(3) Drop the content of ESP32 folder to the root directory of your ESP32 file system. Again, can easily be done using Thonny:

Done!

3D files - Enclosure

All the required 3D files (STLs and f3d project) to 3D print the enclosure are available in the 3D-files-to-print folder.

Wiring

To be done

Tools & libs

Thonny

https://thonny.org

Micropython

https://micropython.org

Microdot

https://microdot.readthedocs.io/en/latest/index.html

JSColor

https://jscolor.com
